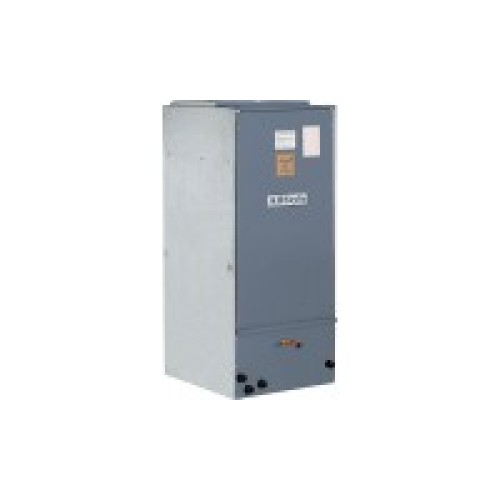

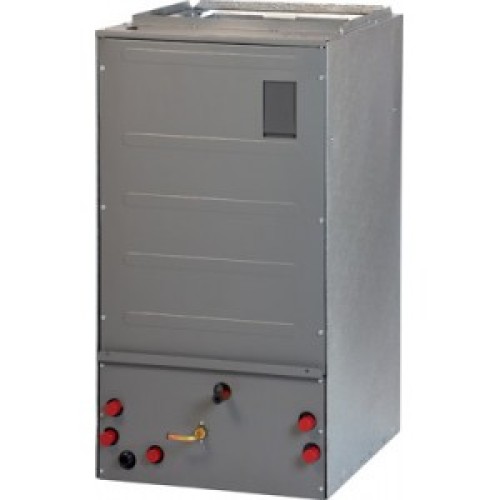

Multi-Position Air Handlers

Model: BLD, BLN, BL*CW, SLN, SLNW, SLNCW

Features:

• Multi-Position Up-Flow and Horizontal
  (Units comes Up-Flow, Horizontal Left or Horizontal Right)
  (Field convertible to the opposite Horizontal direction)
• Polymer drain pan
• Attractive, powder painted exterior
• Fully insulated cabinet
• 208/ 230 VAC operation
• Multi-Speed Direct Drive Blower
• SL* air flow from 600 to 1600 CFM
• BL* air flow from 1200 to 2000 CFM

Optional Features:

• Factory installed Thermal Expansion Valve
• Optional factory installed Electric Heat
  3, 5, 6, 8, 10, 15, or 20 kW
• Electrical Disconnect is standard with 15 and 20 kW heaters
• Slide in Long Life Aluminum or Copper DX Coils available
• Field installed Heat kits available from 3 kW - 20 kW
• ECM Motor
